Showing 16–30 of 38 resultsSorted by price: high to low

  • HMI / Display for multiple sensors

    HMI / Display for Multiple Sensors

    Price range: EUR €1,824 through EUR €2,035

    HMI / Display for Multiple Sensors

    HMI / display with multi-sensor data collection, logging, and graphical functions. View real time and historical data of multiple sensors in one easy to read unit. Export data to USB or output to your SCADA system via Modbus RTU (RS485) or Modbus TCP.

    Standard Features

    • 7” ultra-wide viewing angle LCD touch screen, high resolution data display
    • Two isolated Modbus RTU (RS485) interfaces, supports up to 255 sensor inputs
    • IP65 protection
    • 25 GB of storage, log up to 2,000,000,000 (2 billion) values
    • 2 x alarm relay output channels
    • Outputs:
      • Modbus RTU (RS485),
      • Modbus TCP (Ethernet)
      • USB Type-C
    • Power requirement: 24 to 30 VDC

    Options

    • Panel Mount or Wall Mount
    • 4 x Analogue channels [0 … 20 mA / 4 … 20 mA / 0 … 1 VDC / 0 … 10 VDC]

    Applications

    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Non-explosive environments
    Select options
  • Wall Mount dew point sensorPower Plugs

    Wall-mount Dew Point Monitor

    Price range: EUR €1,115 through EUR €1,908

    Wall mount dew point monitor with touch screen display and alarm. Measure pressure dew point (PDP), relative humidity, temperature and pressure (if using the optional integrated pressure sensor). Ideal for temporary or permanent installation.

    Pressure Dew Point (PDP) Range
    -60°C to +60°C (-76°F to +140°F), or
    -80°C to +20°C (-112°F to +68°C), or
    -110°C to +20°C (-166°F to +68°F)

    Dryer Types: Refrigerant, desiccant, drum or membrane dryers

    Output: 4-20mA and alarm relay

    Power Requirement: Standard wall socket, 110-240vAC

    Application
    • Compressed air and gas systems, process gases
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Dew point sensors - A and K SeriesDew point sensor

    Dew Point Sensor for Refrigerant and Membrane dryers

    Price range: EUR €603 through EUR €1,116

    Dew point sensor with polymer technology for compressed air and inert, non-corrosive gases. Ideal for temporary or permanent installation.

    Pressure Dew Point (PDP) Range: -60°C to +60°C (-76°F to +140°F)

    Dryer Types: Refrigerant, Membrane, Drum or Hybrid dryers

    Outputs: Modbus (RS485) and 4-20mA

    Power requirement: 10 to 30vDC, max 50 mA @ 24vDC

    Applications
    • Compressed air and inert, non-corrosive gas systems
    • Process gases
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Mini inline flow meter

    Mini Flow Meter for Point of Use

    Price range: EUR €519 through EUR €1,040

    Mini flow sensor, ideal for low flow, small pipes and point of use measurements. Measure instantaneous flow and cumulative flow

    Pipe Sizes: DN3 to DN40

    Pipe Connection: NPT or G thread

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 24VDC

    Application
    • Clean and dry compressed air and inert gases
    • Point of use measurements
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options
  • HMI / Display for a single sensorPower Plugs

    HMI / Display for a Single Sensor

    EUR €718

    HMI / Display for a Single Sensor

    HMI / Display for a single sensor. Use with CAA Sensors’ flow meters, dew point sensors or pressure sensors. Ideal for viewing live data and graphs from sensors that (i) don’t have a built-in display, or (ii) are installed in locations that are difficult to access, or (iii) are installed in remote locations.

    Standard Features

    • 4.3″ TFT LCD touch screen
    • Wall mount
    • Modbus RTU input
    • Modbus RTU output
    • IP65 protection
    • Power supply: 85 ~ 264 VAC

    Applications

    • Manufacturing, industrial and pharmaceutical use
    • Permanent or temporary installation
    • Non-explosive environments
    Select options
  • Mini dew point sensorsMini dew point sensors

    Mini Dew Point Sensor for Refrigerant and Membrane dryers

    Price range: EUR €541 through EUR €591

    This economical, mini dew point sensor is suited to small spaces. Measure pressure dew point (PDP), relative humidity, temperature. Ideal for temporary or permanent installation.

    Pressure Dew Point (PDP) Range: -60°C to +60°C (-76°F to +140°F)

    Dryer Types: Refrigerant, Drum or Membrane Dryers

    Outputs: Modbus (RS485) and 4-20mA

    Power Requirement: 10 to 30vDC, max 50 mA @ 24vDC

    Application
    • Compressed air and inert, non-corrosive gas systems
    • Process gases
    • Manufacturing, industrial and pharmaceutical use
    • Permanent or temporary measurements
    • Non-explosive environments

    Select options
  • Hot tap clampHot tap clamp with ball valve

    Hot Tap Clamps

    Price range: EUR €341 through EUR €562

    Compressed Air Alliance’s Hot Tap Clamps are idea for use when a take off or socket needs to be added to the pipework while under pressure. Each set comes with a clamp and a ball valve. The clamps are easy to install around the pipe and form a tight seal.

    Clamp Sizes
    To suit pipe ODs from 45 mm (1.8”) to 240 mm (9.4”)

    Ball Valve Size
    1/2” valve or 3/4” valve

    Working Gas Pressure Range
    Up to 1.6 MPa (16 bar, 232 psi)

    Working Temperature
    0°C to 60°C (+32°F to +140°F)

    Clamp Material
    Clamp shell, nuts and washers are made from 316 stainless steel
    Gasket is made from Nitrile rubber

    Applications
    • Manufacturing and industrial use
    • Temporary or permanent installation

    Select options
  • 3 phase power meter. Din rail mounted3 phase power meter. Din rail mounted

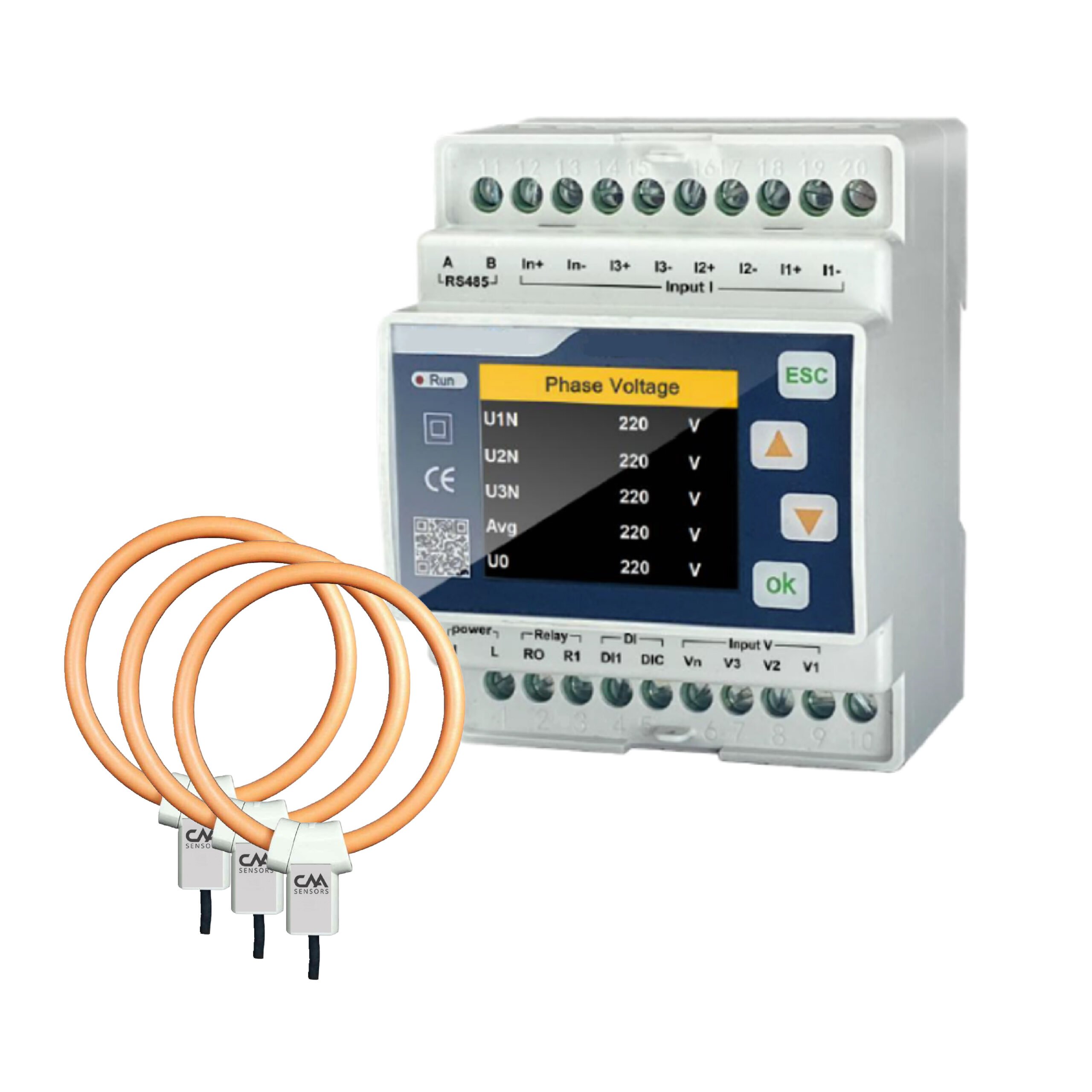

    Power Meter – Din Rail with Display

    Price range: EUR €445 through EUR €551

    This three-phase power meter with Modbus/RTU output is simple to install and easy to configure directly through the built in display and can be connected to your data acquisition system for long term monitoring. Use on mains supply or to sub meter individual equipment or sub loads. Measure voltage, amps, frequency, kilowatts, kilowatt hours, power factor, reactive power, apparent power and harmonics.

    Measured Voltage: 0~600 VAC

    Mounting: Din Rail

    Output: Modbus RS485

    Comes with 3 Rogowski Coils.  Choose from 500 amps, 1,000 amps or 3,000 amps

    Power requirement: 24 VDC, 45- 60 Hz

    Applications
    • Mains supply and sub metering individual equipment or sub loads
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Compact Flow Meter

    Compact Flow Meter for Point of Use

    Price range: EUR €330 through EUR €512

    Compact inline flow sensor, ideal for low flow, small pipes and point of use measurements. Measure instantaneous flow and cumulative flow in clean and dry compressed air and inert gases.

    Standard Features

    • IP Rating: IP40
    • Accuracy: ±3% full scale ±1 digit
    • Output: Modbus (RS485)
    • Display: Colour crystal display
    • Power Requirement: 24VDC

    Options

    • Pipe sizes for G thread: DN15 (1/2″)  to DN40 (1.5″)
    • Gas Types: Air, Carbon Dioxide, Carbon Monoxide, Nitrogen, Oxygen

    Applications

    • Point of use flow measurements
    • Manufacturing, industrial and pharmaceutical use
    • Permanent or temporary installation
    • Non-explosive environments
    Select options
  • ModuMesh KitModuMesh Setup

    ModuMesh – Wireless Modbus Communication

    EUR €449

    ModuMesh is wireless Modbus RS485 mesh device. It allows you to wirelessly transmit data from sensors to a display or data acquisition module, thus removing the need for long runs of cable.

    Standard Features

    • Wireless communication radio frequency:
      • 868MHz (EU)
      • 902-928MHz (Americas, Asia and Australia).
    • Range: Up to 1 km (line of sight)
    • Encrypted communications by AES 128bits
    • IP Rating: IP54
    • Power Requirement: 9 to 30 vDC

    Applications

    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Non-explosive environments
    Select options
  • 3 phase power meter. Panel mounted3 phase power meter. Panel mounted

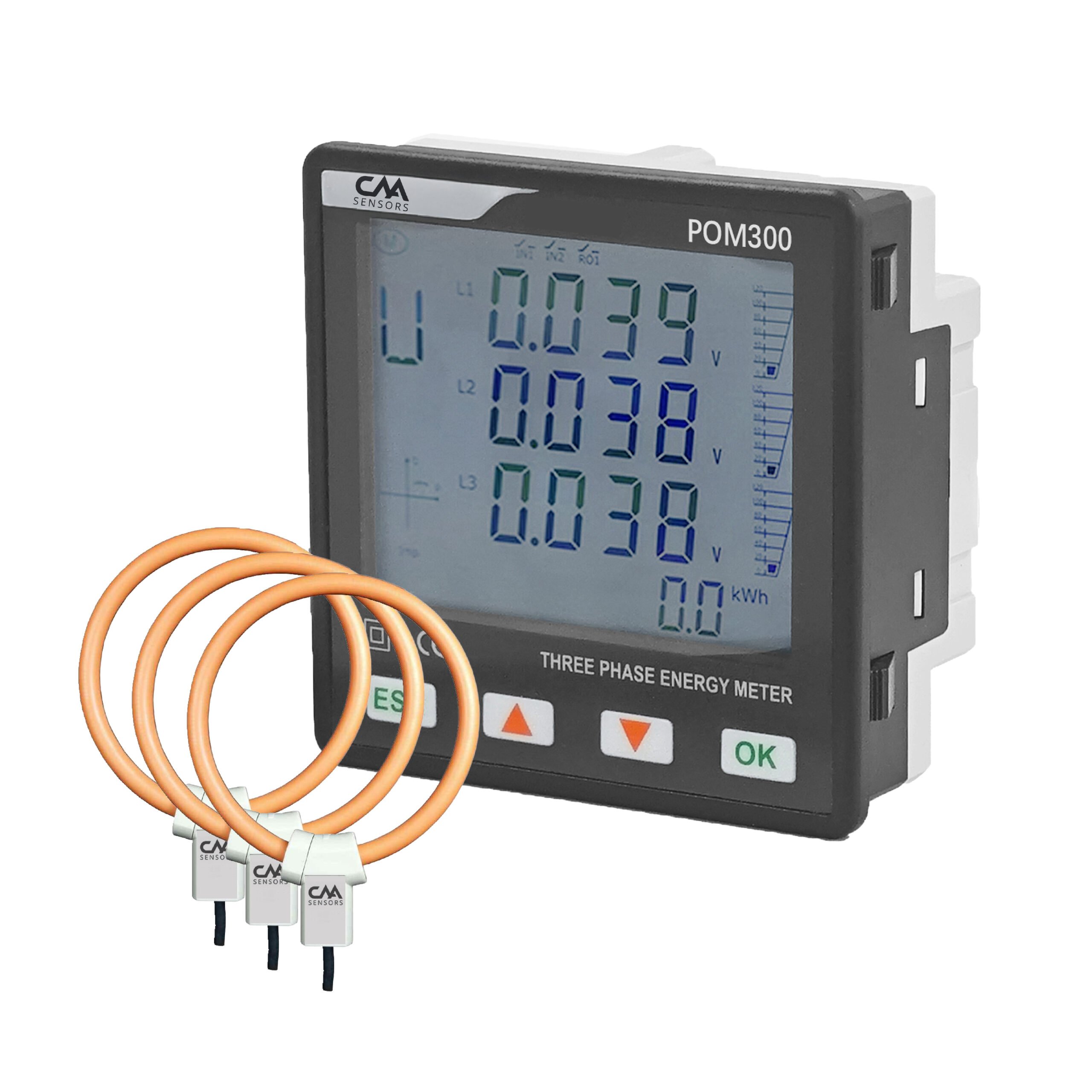

    Power Meter – Panel Mount with Display

    Price range: EUR €343 through EUR €436

    This single or three-phase, panel mount power meter is ideal for installation on main or sub-distribution boards where readings need to be accessed without opening the panel. Use on mains supply or to sub meter individual equipment or sub loads. Measure Voltage, amps, frequency, kilowatts, kilowatt hours, power factor, real power, reactive power, apparent power and harmonics.

    Measured Voltage and Frequency: 0~600 VAC Phase Voltage

    Mounting: Panel Mount

    Output: Modbus RS485

    Comes with 3 Rogowski Coils.  Choose from 500 amps, 1,000 amps or 3,000 amps

    Power requirement: 18-36vDC, 45- 60 Hz

    Application
    • Mains supply, sub metering individual equipment or sub loads
    • Manufacturing, industrial or pharmaceutical use
    • Non-explosive environments

    Select options
  • Ambient Condition Sensor front view

    Ambient Conditions Sensor

    Price range: EUR €399 through EUR €430

    The Ambient Conditions Sensor (ACS) is a multi-parameter device that simultaneously measures ambient temperature, humidity, and pressure. Ideal for use in locations where you want to get a better understanding of ambient conditions and the impact on plant and equipment.

    Measurement Range:

    • Temperature:  -40°C to +85°C | -40°F to +185°F
    • Pressure: 0.6 to 1.1 bar | 8.7 to 15.95 psi
    • Humidity: 0 to 100% RH

    Data Output: Modbus RS485

    Power requirement: 18 to 36 VDC

    Installation: Wall mount, din rail or pipe

    Application

    • Food & beverage, and pharmaceutical use
    • Manufacturing and industrial
    • Temporary or permanent installation
    • Non-explosive environments
    Select options
  • Rogowski coil with integrator for single phase measurements (Amps)

    Rogowski Coils with Integrator

    Price range: EUR €180 through EUR €253

    Current clamps provide an effective energy measurement solution when your budget is limited. Rogowski Coils have a large flexible coil and provide an excellent solution where a traditional current clamp is too difficult to fit. The inline integrator amplifies and converts the coil’s output to a 4-20mA or Modbus (RS485) standard signal for simple connection to your PLC or display.

    Type: Single phase (Amps), current clamp

    Output Signals: 4 to 20mA or Modbus (RS485)

    Accuracy: ±1%

    Display: No Display

    Rogowski Coils options – Comes with 1 Rogowski coil. Choose from 500 amps, 1,000 amps or 3,000 amps

    Power requirement: 24vDC, 100mW

    Applications
    • Single phase measurements – Amps
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options
  • 16 bar Pressure sensor16 bar Pressure sensor with cable

    Pressure Sensor – 16 bar (232 psi)

    Price range: EUR €171 through EUR €188

    Pressure sensor for installation on compressed air and gas systems. Use in wet or dry gas to measure demand, supply and remote pressures. Ideal for temporary or permanent installation.

    Gas Pressure Range: up to 16 bar (232 psi)

    Accuracy: ±1%

    Output: 4-20mA or Modbus

    Power Requirement: 24vDC, < 10mA

    Applications
    • Wet and dry gases
    • Demand, Supply and Remote installations
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Flow meter head protectionFlow Meter Enclosure size

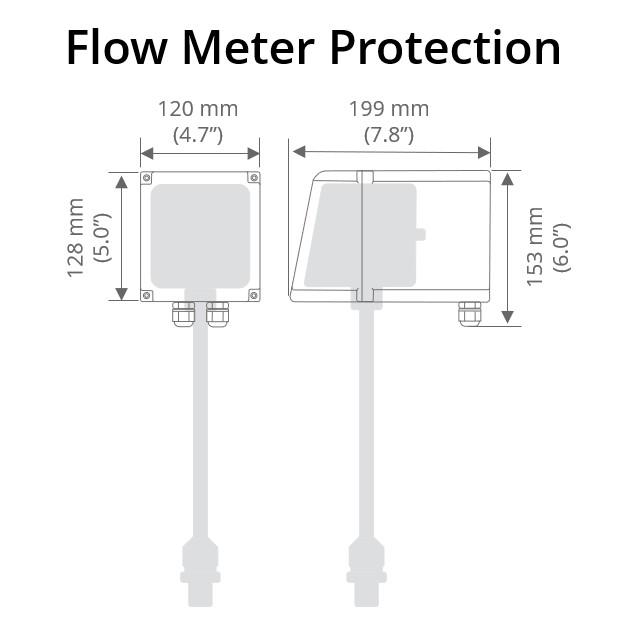

    Flow Meter Enclosure

    EUR €167

    Transparent flow meter enclosure, suitable for use with Compressed Air Alliance Flow meters. Protect the flow meter head from water, dust and other damage. Quick installation. Easy to disassemble.

    Material: Transparent polycarbonate shell

    IP Rating: IP66

    Ambient Temperature Range: -20°C to +80°C (-4°F to +176°F)
