Air Purity
Showing all 2 results
-

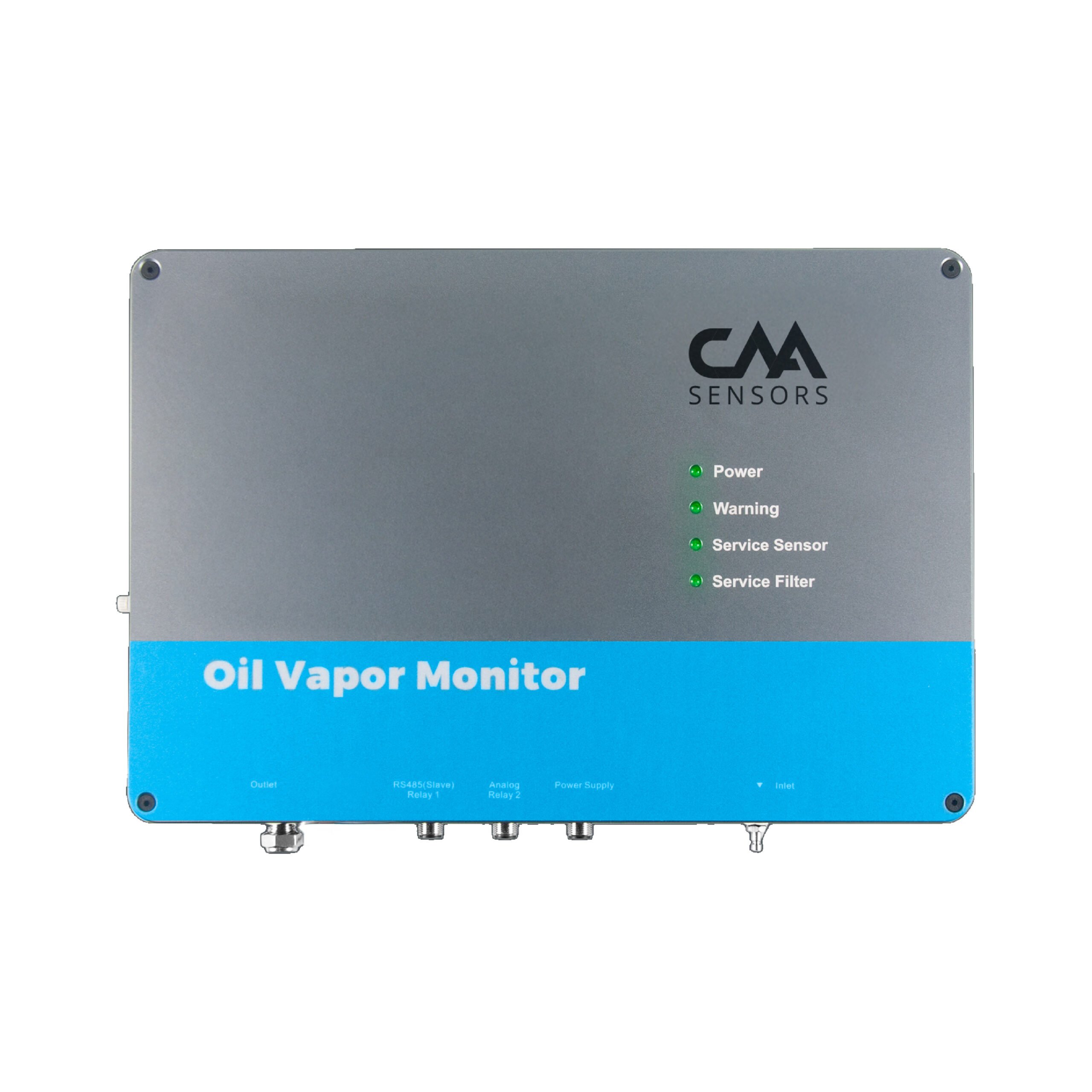

USD $9,381The permanent Oil Vapour & Dew Point Monitor is ideal for pharmaceutical, food, and beverage manufacturers. It monitors oil vapour, pressure dewpoint, pressure and temperature. It also gives the air purity class for oil vapour (ISO 8573-5) and moisture (ISO 8573-3).
Measurement Range:
- Oil Vapour: 0.001 to 5.000 mg/m³
- Dew Point: -110 to +20°C (166°F to +68°F)
- Pressure: 0 to 17 bar (0 to 246 psi)
- Gas Temperature: 0 to +50°C (32°F to +122°F)
ISO5873 Classes:
- ISO 8573-5 class for oil vapour
- ISO 8573- 3 class for moisture (dew point)
Data Output: 4-20mA, Modbus RS485
Power requirement: 100 to 240 VAC
Optional Display:

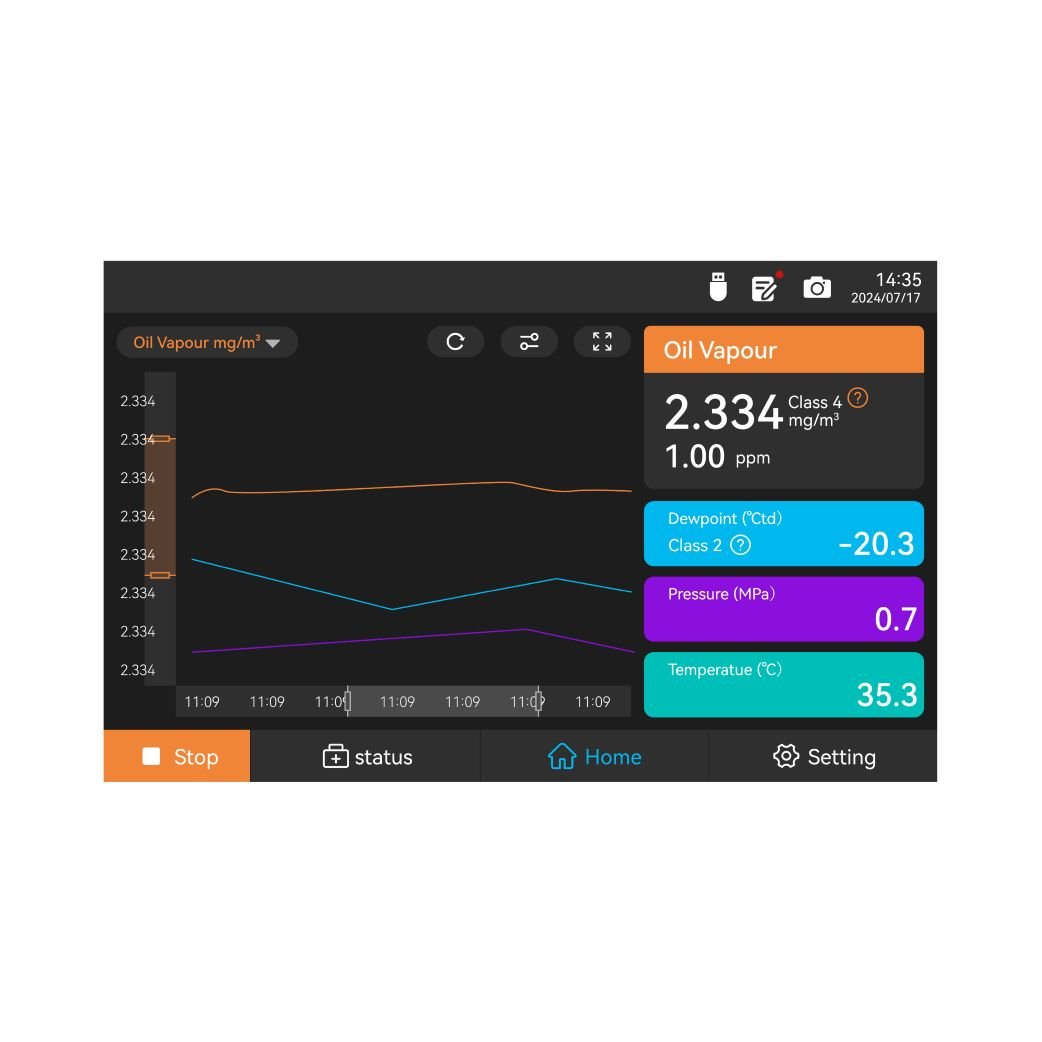

- 7″ touch screen display
- 25 GB of data storage, log up to 3,000,000,000 (3 billion) values
- Data output: 4-20mA, Modbus RS485, Modbus TCP or USB (csv file)
- 2 x alarm relay output channels (oil vapour & dew point)
Application
- Food & beverage, and pharmaceutical use
- Manufacturing and industrial
- Temporary or permanent installation
- Non-explosive environments
-
USD $9,381The Portable Oil Vapour & Dew Point Monitor is ideal for pharmaceutical, food, and beverage manufacturers. It monitors oil vapour, pressure dewpoint, pressure and temperature. It also gives the air purity class for oil vapour (ISO 8573-5) and moisture (ISO 8573-3).
Measurement Range:
- Oil Vapour: 0.001 to 5.000 mg/m³
- Dew Point: -110 to +20°C (166°F to +68°F)
- Pressure: 0 to 17 bar (0 to 246 psi)
- Gas Temperature: 0 to +50°C (32°F to +122°F)
ISO5873 Classes:
- ISO 8573-5 class for oil vapour
- ISO 8573- 3 class for moisture (dew point)
Data Storage: 25 GB of storage, log up to 3,000,000,000 (3 billion) values
Data output: Modbus RS485 or USB (csv file)
Alarm Relays: 2 x alarm relay output channels (oil vapour & dew point)
Power requirement: 100 to 240 VAC, Max 65 W
Application
- Food & beverage, and pharmaceutical use
- Manufacturing and industrial
- Temporary or permanent installation
- Non-explosive environments
