Hot Tapping

Hot tapping is a process that allows you to manually install a connection point on pressurised (or unpressurised) pipes. Hot tapping is useful when you can’t turn off the compressed air or gas system.

Showing all 2 results

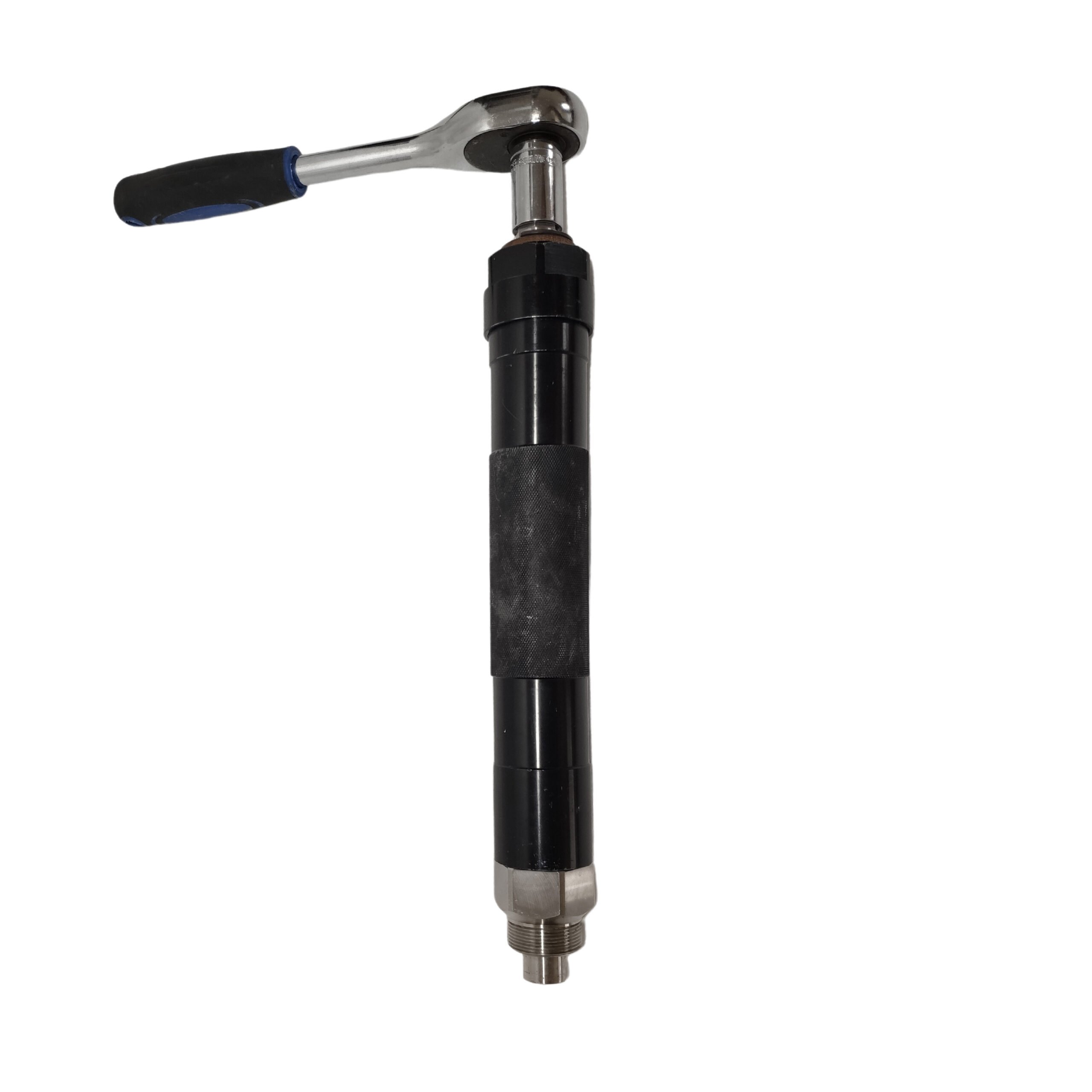

  • Hot tap drill with drill bitHot tap drill
    Price range: USD $916 through USD $1,901

    A hot tap drill is a universal tool that allows you to manually install a connection point on pressurized or unpressurised pipes. Note: Hot tapping can be dangerous and should be performed by experienced technicians only.

    Drill Depth: Up to 200 mm (7.87”)

    Drill bit Diameters
    • 8.5 mm, 14.5 mm, 19.5 mm, 24.5 mm
    • Corresponding ball valve size: 1/4”, 1/2”, 3/4”, 1”

    Drill Bit Material: Cobalt-containing high-performance high-speed steel HSS / E

    Working Gas Pressure Range: Up to 20 bar (290 psi)

    Working Temperature: -50°C to +200°C (-58°F to +392°F)

    Applications
    • Manufacturing and industrial use
    • Temporary or permanent installation

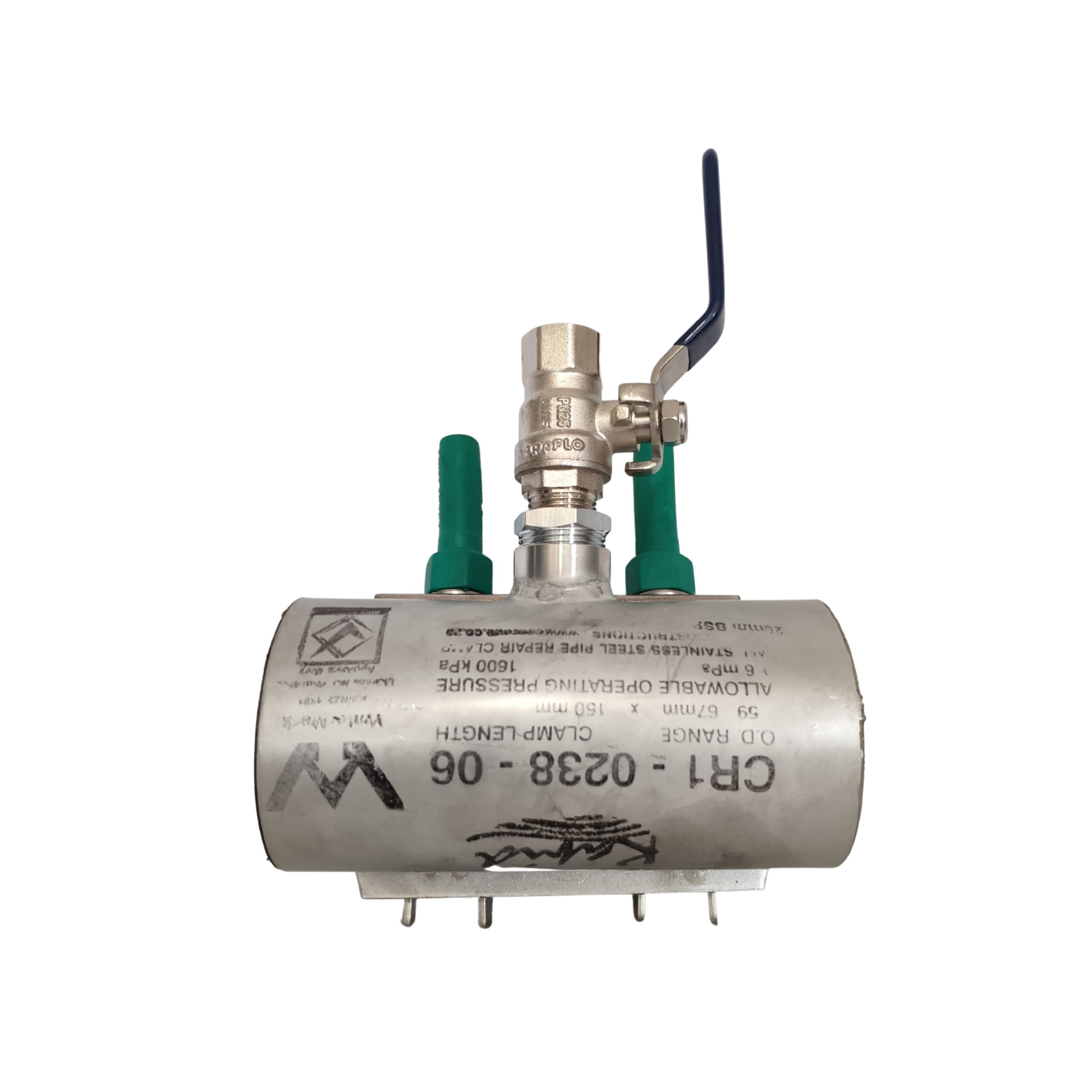

  • Hot tap clampHot tap clamp with ball valve
    Price range: USD $359 through USD $592

    Compressed Air Alliance’s Hot Tap Clamps are idea for use when a take off or socket needs to be added to the pipework while under pressure. Each set comes with a clamp and a ball valve. The clamps are easy to install around the pipe and form a tight seal.

    Clamp Sizes
    To suit pipe ODs from 45 mm (1.8”) to 240 mm (9.4”)

    Ball Valve Size
    1/2” valve or 3/4” valve

    Working Gas Pressure Range
    Up to 1.6 MPa (16 bar, 232 psi)

    Working Temperature
    0°C to 60°C (+32°F to +140°F)

    Clamp Material
    Clamp shell, nuts and washers are made from 316 stainless steel
    Gasket is made from Nitrile rubber

    Applications
    • Manufacturing and industrial use
    • Temporary or permanent installation
