Coil with 4-20mA output

Showing the single result

  • Rogowski coil with integrator for single phase measurements (Amps)Rogowski Coil - Features
    Price range: USD $180 through USD $244

    Current clamps provide an effective energy measurement solution when your budget is limited. Rogowski Coils have a large flexible coil and provide an excellent solution where a traditional current clamp is too difficult to fit. The inline integrator amplifies and converts the coil’s output to a 4-20mA or Modbus (RS485) standard signal for simple connection to your PLC or display.

    Type: Single phase (Amps), current clamp

    Output Signals: 4 to 20mA or Modbus (RS485)

    Accuracy: ±1%

    Display: No Display

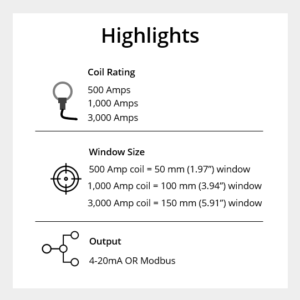

    Rogowski Coils options – Comes with 1 Rogowski coil. Choose from 500 amps, 1,000 amps or 3,000 amps

    Power requirement: 24vDC, 100mW

    Applications
    • Single phase measurements – Amps
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
