Power Meters

•

  Din Rail with Display

  Power Meter – Din Rail with Display

  USD $452 – USD $548Price range: USD $452 through USD $548

  This three-phase power meter with Modbus/RTU output is simple to install and easy to configure directly through the built in display and can be connected to your data acquisition system for long term monitoring. Use on mains supply or to sub meter individual equipment or sub loads. Measure voltage, amps, frequency, kilowatts, kilowatt hours, power factor, reactive power, apparent power and harmonics.

  Measured Voltage: 0~600 VAC

  Mounting: Din Rail

  Output: Modbus RS485

  Comes with 3 Rogowski Coils.  Choose from 500 amps, 1,000 amps or 3,000 amps

  Power requirement: 24 VDC, 45- 60 Hz

  Applications
  • Mains supply and sub metering individual equipment or sub loads
  • Manufacturing, industrial and pharmaceutical use
  • Non-explosive environments

  Select options
•

  Panel Mount

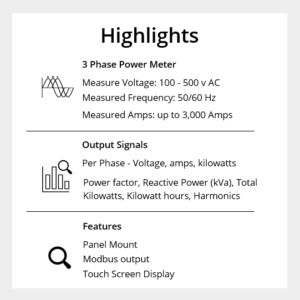

  Power Meter – Panel Mount with Display

  USD $361 – USD $445Price range: USD $361 through USD $445

  This single or three-phase, panel mount power meter is ideal for installation on main or sub-distribution boards where readings need to be accessed without opening the panel. Use on mains supply or to sub meter individual equipment or sub loads. Measure Voltage, amps, frequency, kilowatts, kilowatt hours, power factor, real power, reactive power, apparent power and harmonics.

  Measured Voltage and Frequency: 0~600 VAC Phase Voltage

  Mounting: Panel Mount

  Output: Modbus RS485

  Comes with 3 Rogowski Coils.  Choose from 500 amps, 1,000 amps or 3,000 amps

  Power requirement: 18-36vDC, 45- 60 Hz

  Application
  • Mains supply, sub metering individual equipment or sub loads
  • Manufacturing, industrial or pharmaceutical use
  • Non-explosive environments

  Select options
•

  Coil with 4-20mA output

  Rogowski Coils with Integrator

  USD $180 – USD $244Price range: USD $180 through USD $244

  Current clamps provide an effective energy measurement solution when your budget is limited. Rogowski Coils have a large flexible coil and provide an excellent solution where a traditional current clamp is too difficult to fit. The inline integrator amplifies and converts the coil’s output to a 4-20mA or Modbus (RS485) standard signal for simple connection to your PLC or display.

  Type: Single phase (Amps), current clamp

  Output Signals: 4 to 20mA or Modbus (RS485)

  Accuracy: ±1%

  Display: No Display

  Rogowski Coils options – Comes with 1 Rogowski coil. Choose from 500 amps, 1,000 amps or 3,000 amps

  Power requirement: 24vDC, 100mW

  Applications
  • Single phase measurements – Amps
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
