Pressure Sensor – 50 bar (725 psi)

Price range: USD $199 through USD $216

4-20mA pressure transmitter for compressed air and gas systems. Use in wet or dry gas to measure demand, supply and remote pressures. Ideal for temporary or permanent installation.

Gas Pressure Range: up to 50 bar (725 psi)

Accuracy: ±1%

Output: 4-20mA

Power Requirement: 24vDC, < 10mA

Application
• Wet and dry gases
• Manufacturing, industrial and pharmaceutical use
• Non-explosive environments

United States dollar ($) - USD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Canadian dollar ($) - CAD
  • Pound sterling (£) - GBP
  • Singapore dollar ($) - SGD

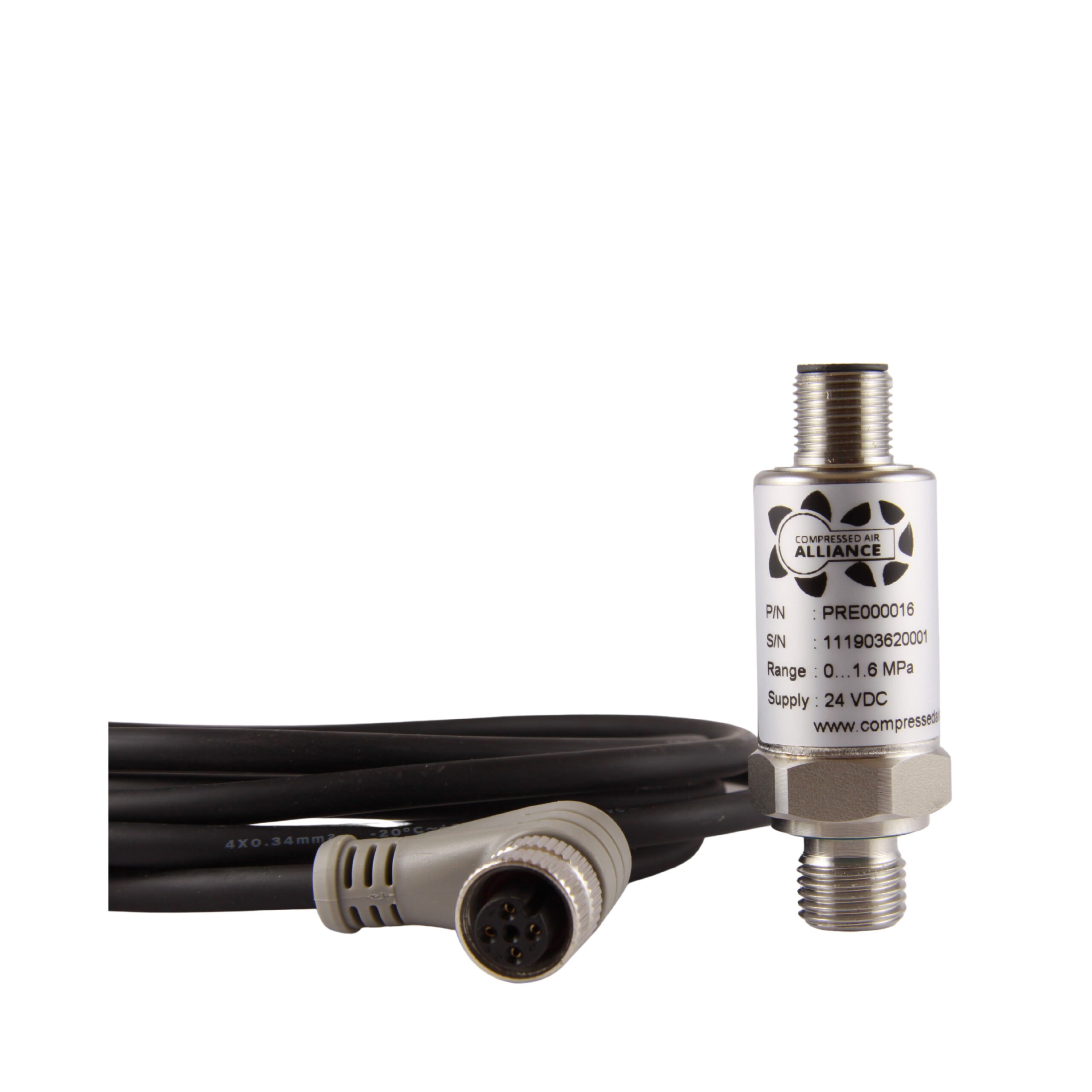

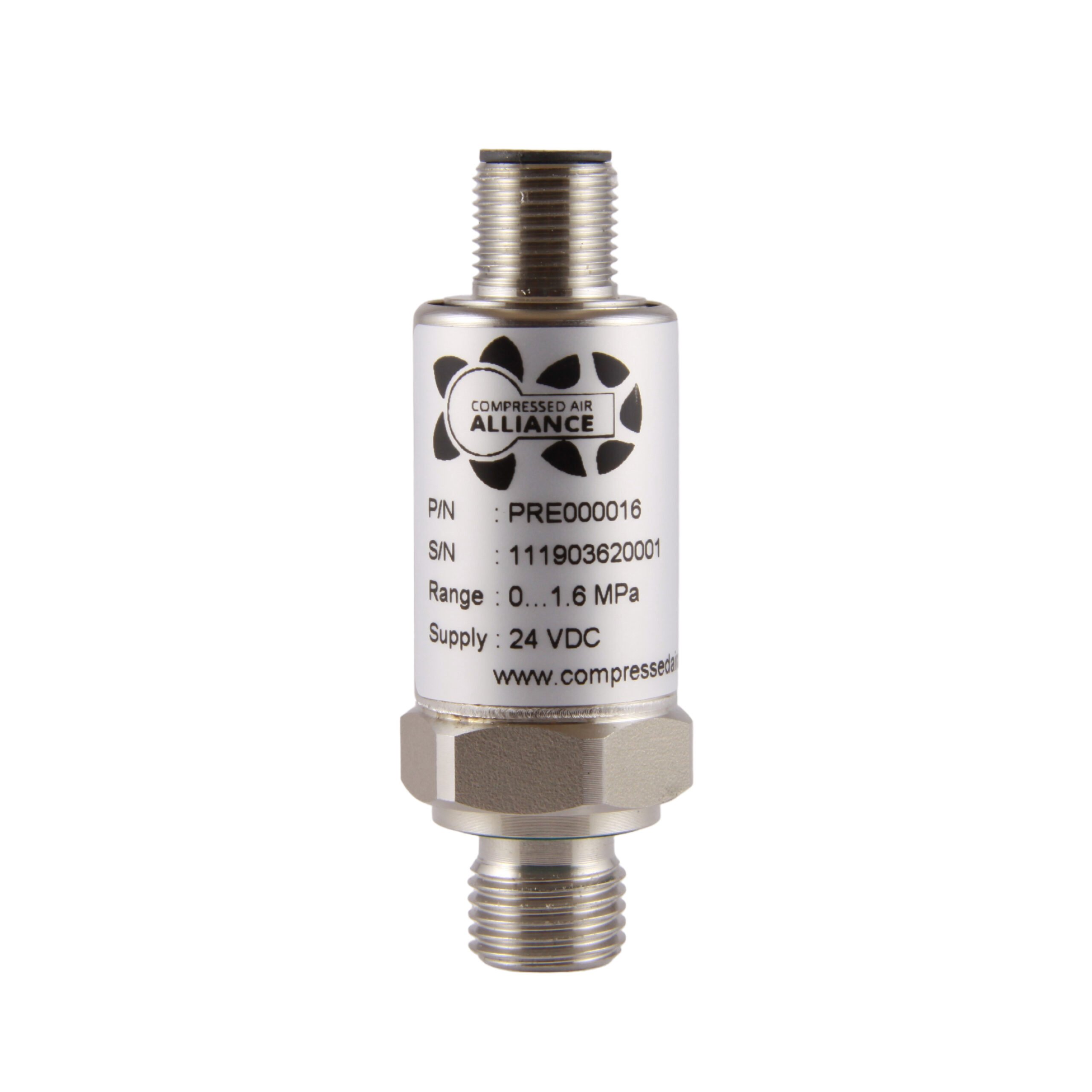

Compressed Air Alliance’s pressure sensor can be used to measure pressure loss across the compressed air and gas system. This easy to install pressure transmitter is perfectly suited for installation on compressed air and gas systems. It can be installed on both wet and dry gases up to 50 bar (725 psi). The sensor has a two wire M12 connection and 4-20mA output.

For effective measurements, you will need at least:

  • one (1) sensor on the wet side of the system to monitor compressor output and
  • one (1) sensor on the dry side of the system to measure the system supply pressure.

Other pressure sensors can be installed to measure pressure drop at key locations such as near any high compressed air or gas consumers and at the far ends of the system.

Pressure Sensor Pack

  • Pressure Sensor
  • M12 connector (data cable optional)
  • Calibration certificate
  • User Manual
  • 12 month warranty

Warranty

12 month warranty

Other Information

Part Numbers: PRE100001, PRE100002, PRE200001, PRE200002

Please refer to our Terms and Conditions of Sale.

Weight N/A
Dimensions N/A

Features

  • Gas Pressure Range: 0-50 bar (725 psi)
  • Accuracy: ±1%
  • IP Rating: IP6
  • Output: 4-20mA
  • Power Requirement: 24vDC
  • Applications
    • Wet and dry gases
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Demand, Supply and Remote installations

Downloads

User Manual
