Thermal Mass Flow Meter

•

  ATEx

  ATEx Inline Flow Meter – IP67

  USD $1,821 – USD $4,143Price range: USD $1,821 through USD $4,143

  ATEX rated thermal mass flow meter suitable for clean, dry gas. Ideal for harsh environments or outdoor installations. Measure flow, mass flow, consumption and gas temperature.

  Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

  IP Rating: IP67

  ATEx Rating: Optional

  Pipe Sizes: DN20 to DN300

  Accuracy: ±1.5% reading, ±0.3% full scale

  Output: Modbus (RS485) and 4-20mA

  Power Requirement: 18 to 30VDC / 5W@24VDC

  Applications
  • Outdoors or harsh environments
  • Clean and dry compressed air and inert gases
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
•

  ATEx

  ATEx Thermal Mass Flow Meter – IP67

  USD $2,376 – USD $2,948Price range: USD $2,376 through USD $2,948

  Outdoor thermal mass flow meter suitable for clean, dry gas. Ideal for harsh environments or outdoor installations. Measure flow, mass flow, consumption and gas temperature.

  Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

  ATEx Rating: Optional

  IP Rating: IP67

  Pipe Sizes: DN20 to DN300

  Accuracy: ±1.5% reading, ±0.3% full scale

  Output: Modbus (RS485) and 4-20mA

  Power Requirement: 18 to 30VDC / 5W@24VDC

  Applications
  • Outdoors or harsh environments
  • Clean and dry compressed air and inert gases
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
•

  Flow Meter - Gas and Steam

  Inline Flow Meter (Indoor)

  USD $1,288 – USD $2,273Price range: USD $1,288 through USD $2,273

  Inline type, thermal mass flow sensor for clean, dry gas. Flange (DIN) or R-Thread pipe connection. Measure flow, mass flow, consumption and gas temperature.

  Flow Range: 0.1 to 250 Nm/sec (0.3 to 820 ft/sec)

  Pipe Sizes: DN15 to DN80

  Pipe Connection: Flange or R-Thread

  Accuracy: ±1.5% reading, ±0.3% full scale

  Output: Modbus (RS485) and 4-20mA

  Power Requirement: 18 to 30VDC / 5W@24VDC

  Applications
  • Compressed air and gas systems
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
•

  Flow Meter - Gas and Steam

  Thermal Mass Flow Meter (Indoor)

  USD $1,992 – USD $2,123Price range: USD $1,992 through USD $2,123

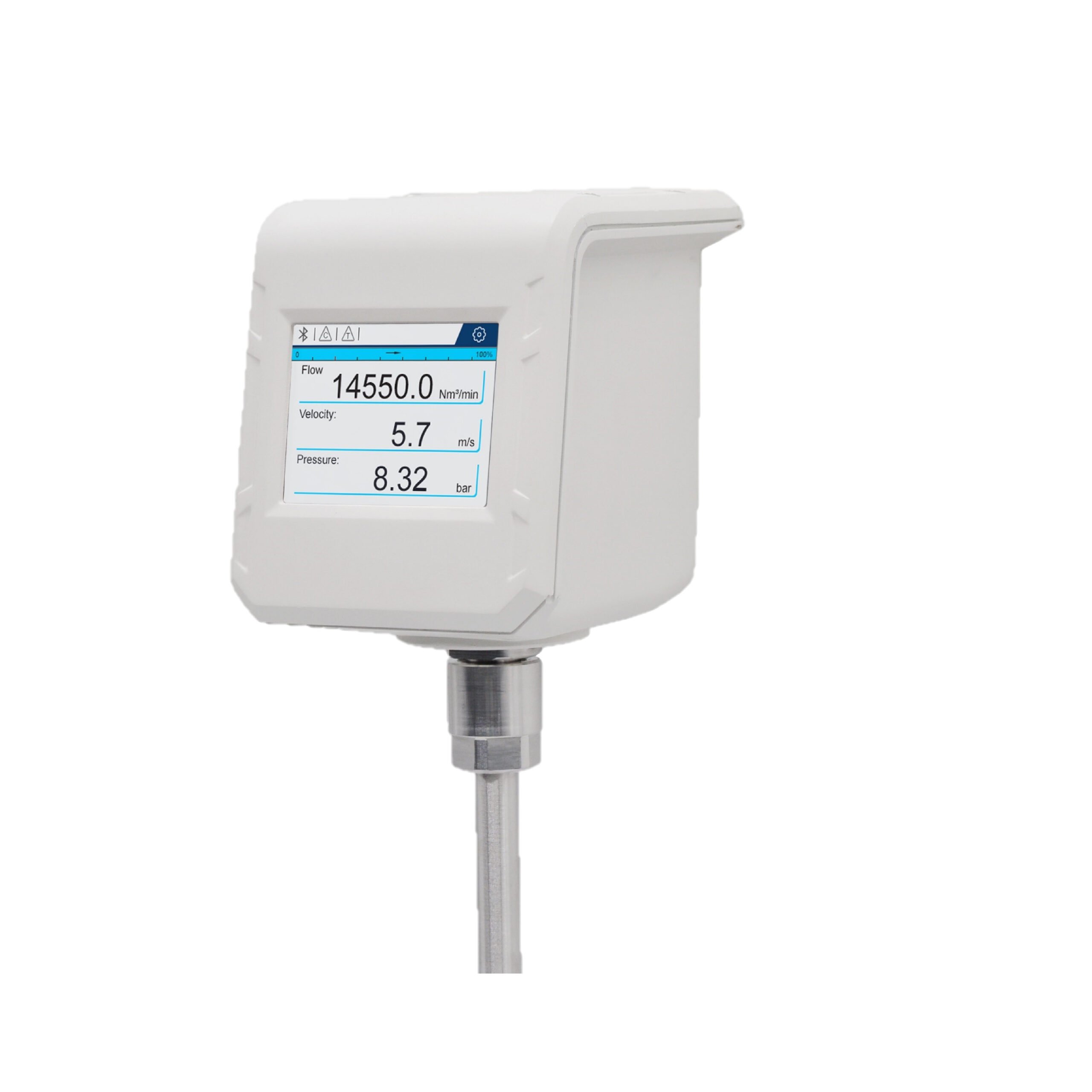

  Insertion type, thermal mass flow sensor for clean, dry gas. Good option where shutting down the system is difficult or impossible. Measure flow, mass flow, consumption and gas temperature.

  Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

  Pipe Sizes: DN20 to DN600

  Accuracy: ±1.5% reading, ±0.3% full scale

  Output: Modbus (RS485) and 4-20mA

  Power Requirement: 18 to 30VDC / 5W@24VDC

  Application
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
•

  Flow Meter - Gas and Steam

  Mini Flow Meter for Point of Use

  USD $546 – USD $1,084Price range: USD $546 through USD $1,084

  Mini flow sensor, ideal for low flow, small pipes and point of use measurements. Measure instantaneous flow and cumulative flow

  Pipe Sizes: DN3 to DN40

  Pipe Connection: NPT or G thread

  Accuracy: ±1.5% reading, ±0.3% full scale

  Output: Modbus (RS485) and 4-20mA

  Power Requirement: 24VDC

  Application
  • Clean and dry compressed air and inert gases
  • Point of use measurements
  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation

  Select options
•

  Flow Meter - Gas and Steam

  Compact Flow Meter for Point of Use

  USD $347 – USD $539Price range: USD $347 through USD $539

  Compact inline flow sensor, ideal for low flow, small pipes and point of use measurements. Measure instantaneous flow and cumulative flow in clean and dry compressed air and inert gases.

  Standard Features

  • IP Rating: IP40
  • Accuracy: ±3% full scale ±1 digit
  • Output: Modbus (RS485)
  • Display: Colour crystal display
  • Power Requirement: 24VDC

  Options

  • Pipe sizes for G thread: DN15 (1/2″)  to DN40 (1.5″)
  • Gas Types: Air, Carbon Dioxide, Carbon Monoxide, Nitrogen, Oxygen

  Applications

  • Point of use flow measurements
  • Manufacturing, industrial and pharmaceutical use
  • Permanent or temporary installation
  • Non-explosive environments

  Select options
