CAA Sensors

Showing 1–15 of 36 results

  • Portable oil vapour and dew point monitorGraph screen of the portable oil vapour monitor

    Oil Vapour & Dew Point Monitor – Portable

    EUR €8,912

    The Portable Oil Vapour & Dew Point Monitor is ideal for pharmaceutical, food, and beverage manufacturers. It monitors oil vapour, pressure dewpoint, pressure and temperature. It also gives the air purity class for oil vapour (ISO 8573-5) and moisture (ISO 8573-3).

    Measurement Range:

      • Oil Vapour: 0.001 to 5.000 mg/m³
      • Dew Point: -110 to +20°C (166°F to +68°F)
      • Pressure: 0 to 17 bar (0 to 246 psi)
      • Gas Temperature: 0 to +50°C (32°F to +122°F)

    ISO5873 Classes:

    • ISO 8573-5 class for oil vapour
    • ISO 8573- 3 class for moisture (dew point)

    Data Storage: 25 GB of storage, log up to 3,000,000,000 (3 billion) values

    Data output: Modbus RS485 or USB (csv file)

    Alarm Relays: 2 x alarm relay output channels (oil vapour & dew point)

    Power requirement: 24 to 30 VDC

    Application

    • Food & beverage, and pharmaceutical use
    • Manufacturing and industrial
    • Temporary or permanent installation
    • Non-explosive environments
    Select options
  • Vortex Flow Meter

    ATEX Vortex Flow Meter

    Price range: EUR €1,907 through EUR €8,360

    The Vortex flow meter is perfectly suited for measuring the flow, pressure and temperature of gases and steam. Ideal for use in steam, wet gas and on the outlet of compressors. Optional ATEx rating for use in explosive areas.

    Flow Range: 1.5 to 300 Nm/sec (5 to 931 ft/sec)

    Pipe Sizes: DN15 to DN300

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 18 to 30VDC / 10W@24V

    ATEx Rating: Optional

    Application
    • Steam, compressed air and gas
    • Compressor outlets
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options

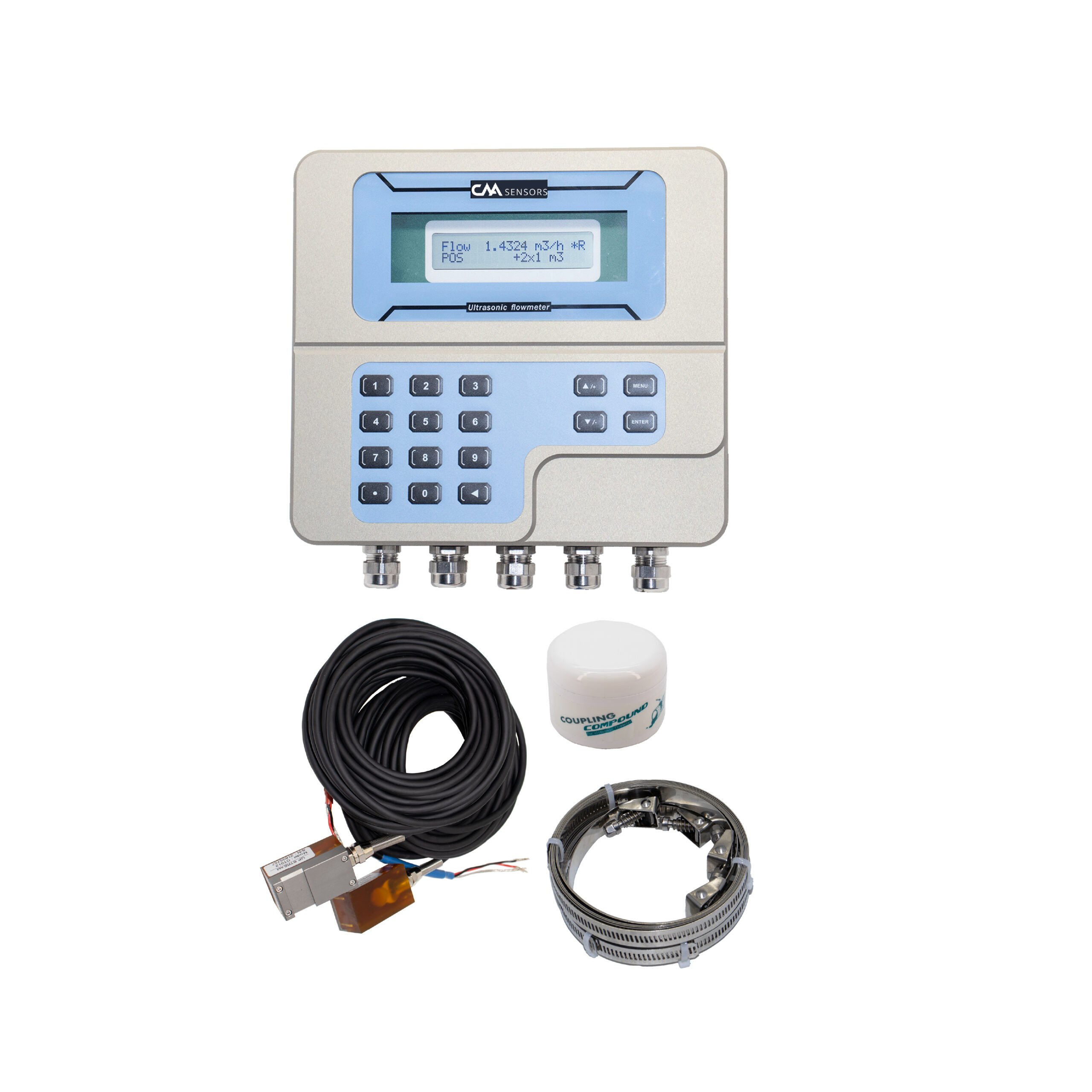

  • Ultrasonic flow meterUltrasonic liquid flow meter with wall mount display

    Ultrasonic Flow Meter

    EUR €4,988

    Ultrasonic flow meter for industrial and domestic water, sea water, heating and cooling water, and other clean liquids with minimal bubbles or solids. Measure real-time flow, accumulated flow, flow velocity and pipe temperature. Ideal for temporary or permanent installation.

    Liquid Flow Range: 0.01m/s to 12m/s (0.03 ft/s to 40ft/s)

    Pipe Sizes: DN25 to DN5000

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 24vDC

    Applications
    • Clean liquids with minimal bubbles or solids
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Add to cart
  • Inline flow meter for outdoor use or harsh environmentsOutdoor flow meter head

    ATEx Inline Flow Meter – IP67

    Price range: EUR €1,730 through EUR €3,936

    ATEX rated thermal mass flow meter suitable for clean, dry gas. Ideal for harsh environments or outdoor installations. Measure flow, mass flow, consumption and gas temperature.

    Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

    IP Rating: IP67

    ATEx Rating: Optional

    Pipe Sizes: DN15 to DN80

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 18 to 30VDC / 5W@24VDC

    Applications
    • Outdoors or harsh environments
    • Clean and dry compressed air and inert gases
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options

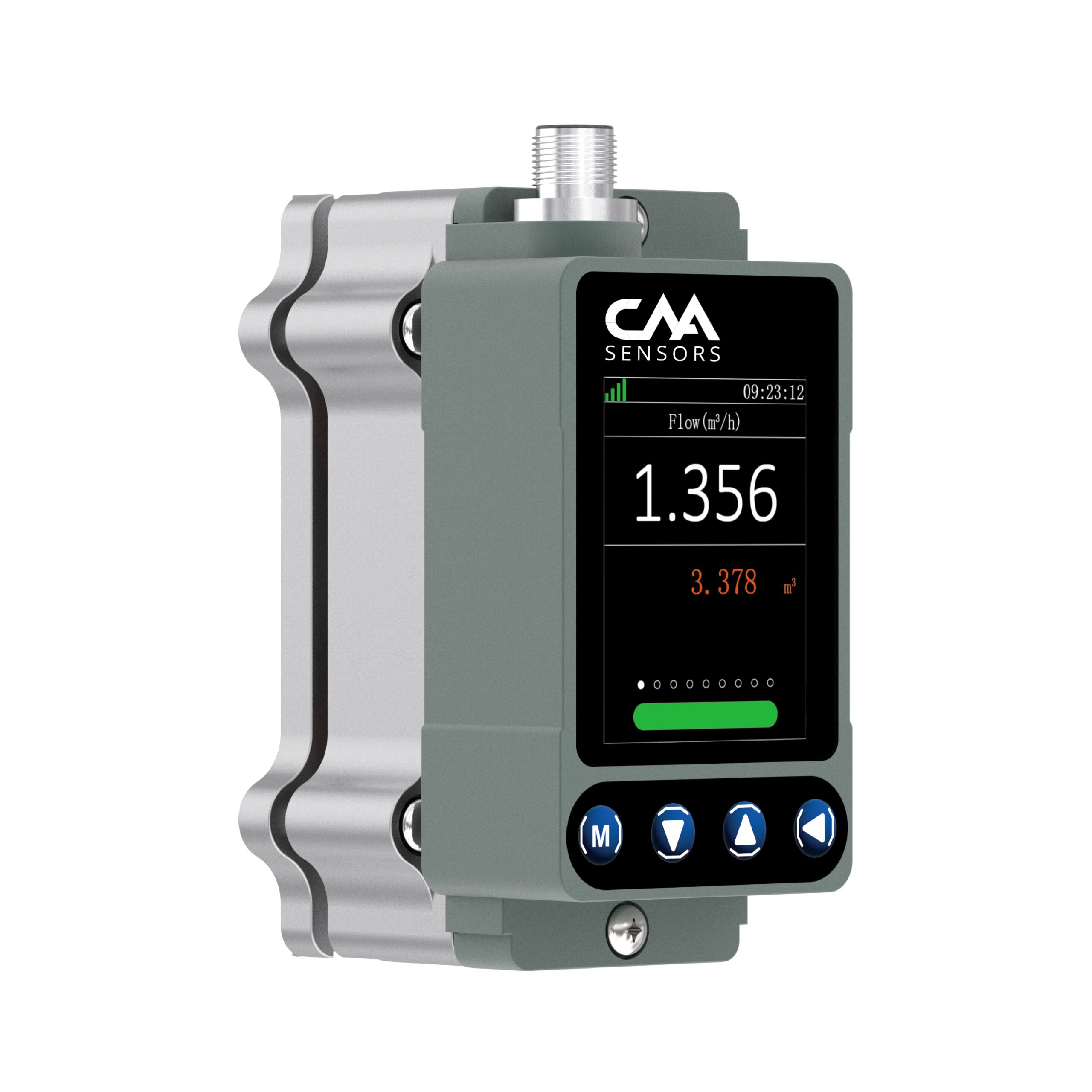

  • Ultrasonic liquid flow meter. Clamp on styleUltrasonic liquid flow meter. Clamp on style

    Ultrasonic Flow Meter – Clamp-on

    Price range: EUR €1,607 through EUR €3,466

    Ultrasonic flow meter for industrial and domestic water, sea water, heating and cooling water, diesel oil, alcohol or other clean liquids with minimal bubbles or solids. Measure real-time flow, accumulated flow, flow velocity and pipe temperature. Ideal for temporary or permanent installation.

    Liquid Flow Range: 0.1m/s to 5m/s (0.328ft/s to 16ft/s)

    Pipe Sizes: DN6 to DN100

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 24vDC

    Applications
    • Clean liquids with minimal bubbles or solids
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Insertion style flow meter for outdoor use or harsh environmentsOutdoor flow meter head

    ATEx Thermal Mass Flow Meter – IP67

    Price range: EUR €2,257 through EUR €2,801

    Outdoor thermal mass flow meter suitable for clean, dry gas. Ideal for harsh environments or outdoor installations. Measure flow, mass flow, consumption and gas temperature.

    Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

    ATEx Rating: Optional

    IP Rating: IP67

    Pipe Sizes: DN20 to DN300

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 18 to 30VDC / 5W@24VDC

    Applications
    • Outdoors or harsh environments
    • Clean and dry compressed air and inert gases
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options

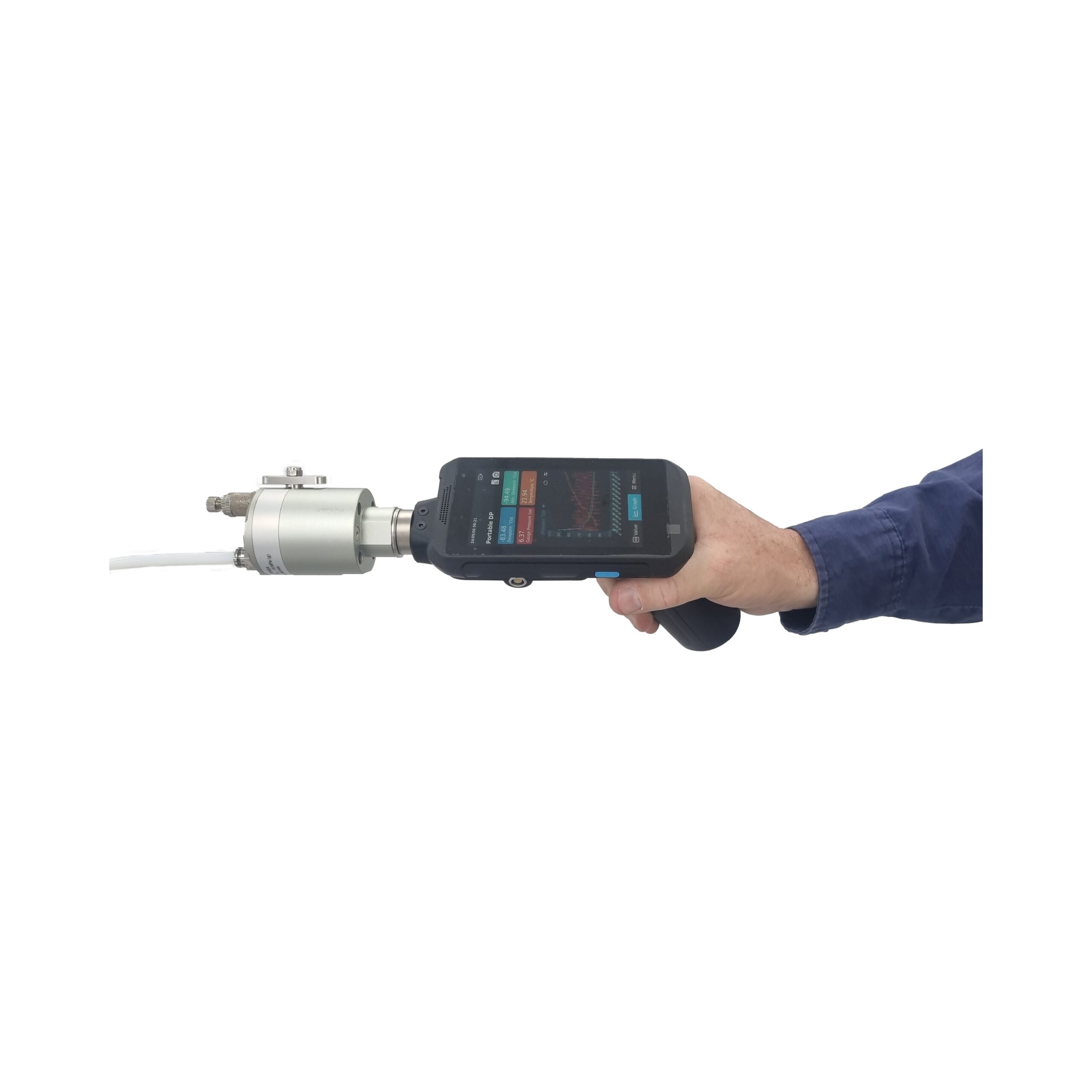

  • Handheld dew point sensorHandheld dew point sensor

    Portable Dew Point Sensor

    Price range: EUR €1,927 through EUR €2,698

    Handheld / portable dew point sensor for compressed air and gases. Ideal for service technicians, auditors and temporary measurements.

    Pressure Dew Point (PDP) Range
    -60°C to +60°C (-76°F to +140°F) or
    -110°C to +60°C (-166°F to +140°F)

    Gas Pressure Range: up to 17 bar (246 psi)

    Dryer Types: Desiccant, membrane, drum, refrigerant or hybrid dryers

    Gas Quality: Minimal contaminates (ie minimal oil, particles or water vapour)

    Applications
    • Auditors and technicians
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Pitot tube flow meterThermal Mass flow meter head

    Pitot Tube Flow Meter

    Price range: EUR €2,149 through EUR €2,438

    Pitot Tube flow meter. Ideally suited to moist, dirty and high velocity compressed air and inert gas systems that contain some level of contamination. Measure flow, consumption, pressure and temperature.

    Do not use Pitot Tube flow meters on compressor outlets. The pitot tube flow meter must have a filter or water separator between the compressor and flow meter.

    Flow Range: 5 – 300 Nm/s (17 to 984 ft/s)

    Gas Pressure Range: up to 17 bar (247 psi)

    Pipe Sizes: DN25 to DN600

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement:
    • During start up: 18 to 30V DC ⁄ 24W@24V
    • Normal operation: 18 to 30VDC / 6.5W@24VDC

    Bi-directional: Optional

    Applications
    • Compressed air and gas systems
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options
  • Electromagnetic flow meter for liquids

    Electromagnetic Flow Meter

    Price range: EUR €1,876 through EUR €2,365

    Electromagnetic flow meter for industrial and domestic water, sea water, heating and cooling water, wastewater and more. Measure real-time flow, accumulated flow, flow velocity and mass flow. Ideal for permanent installations.

    Liquid Quality: Electrically conductive liquids

    Pipe Sizes: DN15 to DN150

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 24vDC

    Applications
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Non-explosive environments

    Select options

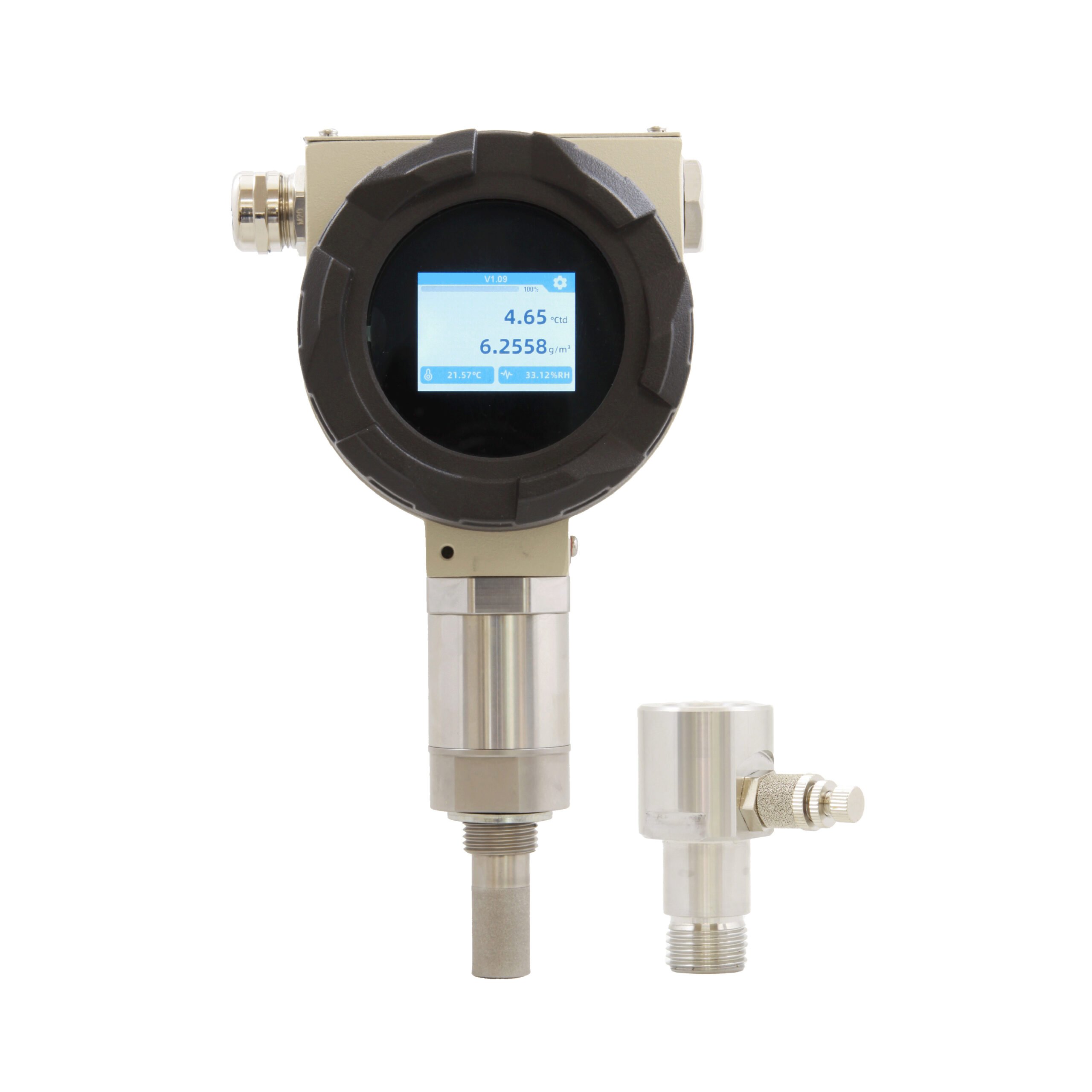

  • Dew point sensor for outdoor use or harsh environmentsDew point sensor for outdoor use or harsh environments

    ATEX Dew Point Sensor – IP67

    Price range: EUR €1,689 through EUR €2,294

    The ATEX dew point sensor has a rugged design and an IP67 rating. Suitable for compressed air and gases. Measure pressure dew point (PDP), relative humidity (RH), temperature (°C, °F) and pressure (optional).

    Dryer Types

    • Desiccant, Drum, Hybrid, Membrane, Refrigerant dryers

    Standard Features

    • Minimum gas flow rate: > 1L/min
    • IP Rating: IP67
    • Accuracy: up to ±2%
    • Outputs: Modbus RTU (RS485) and 4-20mA
    • Display: 2.0” IPS LCD display with an ultra-wide viewing angle
    • Alarm Relay: Yes
    • Power Requirement: 16 to 30vDC
    • Gas Types: Air, Argon, Carbon Dioxide, Helium, Hydrogen, Nitrogen, Natural Gas, Nitrous Oxide, Oxygen

    Options

    • ATEX rating
      • Ex Logo II 2G Ex db IIC T6 Gb
      • Ex Logo II 2D Ex tb IIIC T80°C Db
    • Pressure Dew Point (PDP) Range:
      • -60°C to +60°C (-76°F to +140°F) or
      • -110°C to +20°C (-166°F to +68°F)
    • Integrated pressure sensor

    Applications

    • Compressed air and gas systems
    • Nitrogen systems
    • Process gases
    • Manufacturing, industrial and pharmaceutical use
    • Permanent or temporary installation
    Select options
  • Inline Thermal Mass flow meter. R-thread connectionInline Thermal Mass flow meter. Flange connection

    Inline Flow Meter (Indoor)

    Price range: EUR €1,224 through EUR €2,159

    Inline type, thermal mass flow sensor for clean, dry gas. Flange (DIN) or R-Thread pipe connection. Measure flow, mass flow, consumption and gas temperature.

    Flow Range: 0.1 to 250 Nm/sec (0.3 to 820 ft/sec)

    Pipe Sizes: DN15 to DN80

    Pipe Connection: Flange or R-Thread

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 18 to 30VDC / 5W@24VDC

    Applications
    • Compressed air and gas systems
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options
  • Thermal Mass flow meter. Insertion styleThermal Mass flow meter head

    Thermal Mass Flow Meter (Indoor)

    Price range: EUR €1,892 through EUR €2,017

    Insertion type, thermal mass flow sensor for clean, dry gas. Good option where shutting down the system is difficult or impossible. Measure flow, mass flow, consumption and gas temperature.

    Flow Range: 0.1 to 250 Nm/s (0.3 to 820 ft/sec)

    Pipe Sizes: DN20 to DN600

    Accuracy: ±1.5% reading, ±0.3% full scale

    Output: Modbus (RS485) and 4-20mA

    Power Requirement: 18 to 30VDC / 5W@24VDC

    Application
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation

    Select options
  • HMI / Display for multiple sensors

    HMI / Display for Multiple Sensors

    Price range: EUR €1,783 through EUR €1,990

    HMI / Display for Multiple Sensors

    HMI / display with multi-sensor data collection, logging, and graphical functions. View real time and historical data of multiple sensors in one easy to read unit. Export data to USB or output to your SCADA system via Modbus RTU (RS485) or Modbus TCP.

    Standard Features

    • 7” ultra-wide viewing angle LCD touch screen, high resolution data display
    • Two isolated Modbus RTU (RS485) interfaces, supports up to 255 sensor inputs
    • IP65 protection
    • 25 GB of storage, log up to 2,000,000,000 (2 billion) values
    • 2 x alarm relay output channels
    • Outputs:
      • Modbus RTU (RS485),
      • Modbus TCP (Ethernet)
      • USB Type-C
    • Power requirement: 24 to 30 VDC

    Options

    • Panel Mount or Wall Mount
    • 4 x Analogue channels [0 … 20 mA / 4 … 20 mA / 0 … 1 VDC / 0 … 10 VDC]

    Applications

    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Non-explosive environments
    Select options

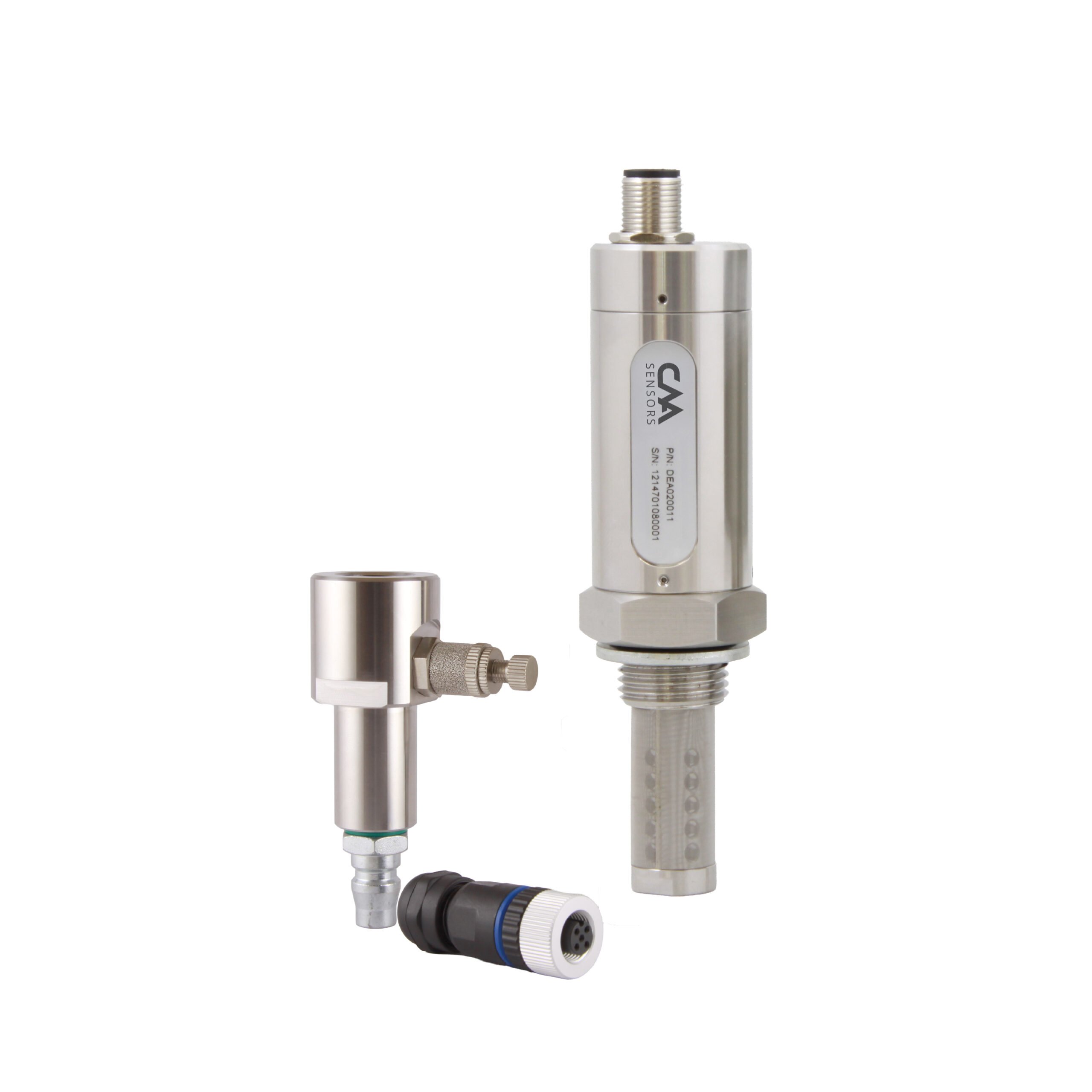

  • Dew point sensors - A and K SeriesDew point sensor

    Dew Point Sensor for Desiccant or Membrane Dryers, Nitrogen and Hydrogen

    Price range: EUR €956 through EUR €1,808

    Dew point transmitter with Alumina-Oxide sensor for compressed air, inert gases, nitrogen systems and hydrogen systems. Ideal for temporary or permanent installation.

    Pressure Dew Point (PDP) Range
    -80°C to +20°C (-112°F to +68°F), or
    -110°C to +20°C (-166°F to +68°F), or
    -120°C to +20°C (-184°F to +68°F),

    Dryer Types: Gas or compressed air systems with desiccant, membrane, drum or hybrid dryers.

    Outputs: Modbus (RS485) and 4-20mA

    Power Requirement: 10 to 30vDC, max 50 mA @ 24vDC

    Applications
    • Compressed air and gas systems, nitrogen systems, hydrogen systems, process gases
    • Manufacturing, industrial and pharmaceutical use
    • Non-explosive environments

    Select options
  • Hot tap drill with drill bitHot tap drill

    Hot Tap Drill

    Price range: EUR €870 through EUR €1,806

    A hot tap drill is a universal tool that allows you to manually install a connection point on pressurized or unpressurised pipes. Note: Hot tapping can be dangerous and should be performed by experienced technicians only.

    Drill Depth: Up to 200 mm (7.87”)

    Drill bit Diameters
    • 8.5 mm, 14.5 mm, 19.5 mm, 24.5 mm
    • Corresponding ball valve size: 1/4”, 1/2”, 3/4”, 1”

    Drill Bit Material: Cobalt-containing high-performance high-speed steel HSS / E

    Working Gas Pressure Range: Up to 20 bar (290 psi)

    Working Temperature: -50°C to +200°C (-58°F to +392°F)

    Applications
    • Manufacturing and industrial use
    • Temporary or permanent installation

    Select options
